UHF Vehicle Access Control System

About System-

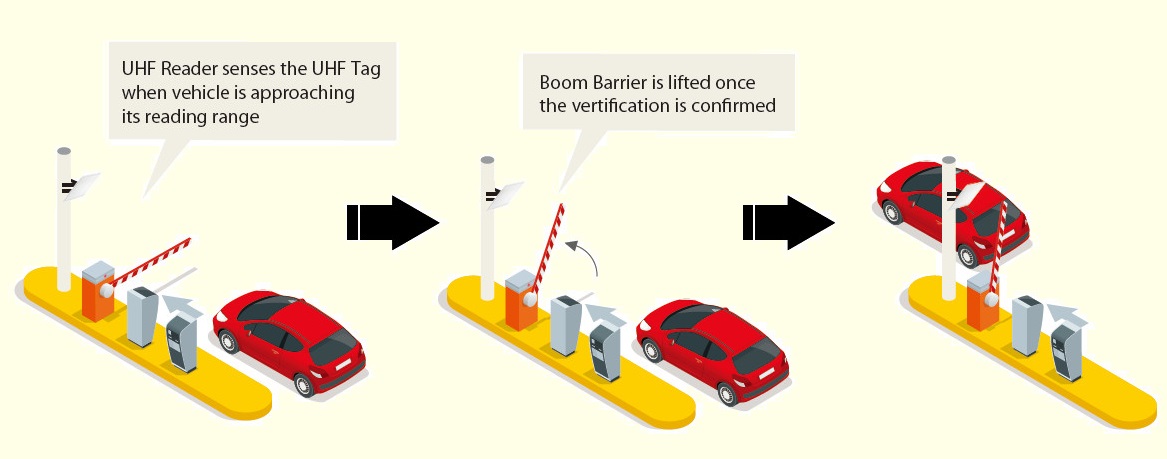

  •  RFID UHF long range acess system is mostly used to manage movement for authorized vehicle without any delay. Drivers stick the tags on their vehicle’s windshield. When approach to the entrance gate, the RFID reader will read the tag then transfer information to control system. Finally, the boom barrier gate will will lift up for access upon valid recognition. If not, access will be denied.

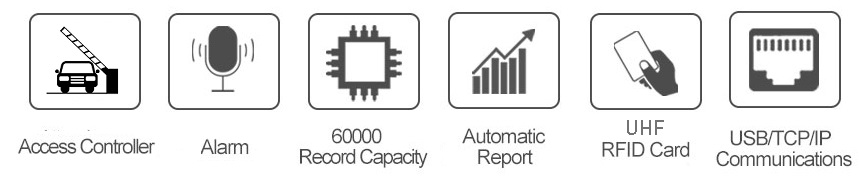

Hardware Features

  •  Reader: Support 2 UHF Long Range Tag Reader.
  •  Mode: Offline mode option (Permanent PC not required.
  •  Display: 16x2 Alphanumeric display for Clock & Information.
  •  Portable: Any existing boom barrier system can be updated with UHF.
  • Communication Protocol: TCP/IP & Pushdata Local / Internet / Cloud.
  •  Clock: In-bulid RTC (Real Time Clock) to run devices with updated time.
  •  Alarm: In-build buzzer in RFID Reader for Indication of RFID Tag detection.
  •  Memory: 8GB in-build Flash Memory for data logging , can be expand upto 16GB.
  •  Indication: Device has option to inetrface Indication Red/Green lights for indication.
  • Manual Operation: Manual Switch connection option to open Gate/Boom Barrier manually.



Software Features

  •  Apllication support  Windows XP, 7, 8.0, 8.1 & above.
  •  Application supported free My SQL database.
  •  Help to manage Access records of Vehicle In/Out.
  •  Easy registration and delection of new Vehicle.
  •  Help to manage Access records of Vehicle In/Out.
  •  Date wise log downlod facility which store at device Flash memory.
  •  Gate permission of any Card/Tag can be set through software and this permission info will save in device, so no need to connect PC for further operation (Gate/ Boom Barrier will be open through tag which have permission and log will save for the same).
  • Auto Access log download to database as device connected with server and same time internal clock of device update with system time.
  •

Package Contains

  •  RFID Controller + UHF Reader (Optional)
  • 12V/2A Power Adapter.
  • Optional (LED Lights & Manual Operation Switch).
  • Clamp plate with screw to hang over wall.
  •  PC Software & User Manual.

Application

  •  Home, Office, Apartment, Department & Hotels.









Note: Devcie & Software can be Customized as per requirement.
